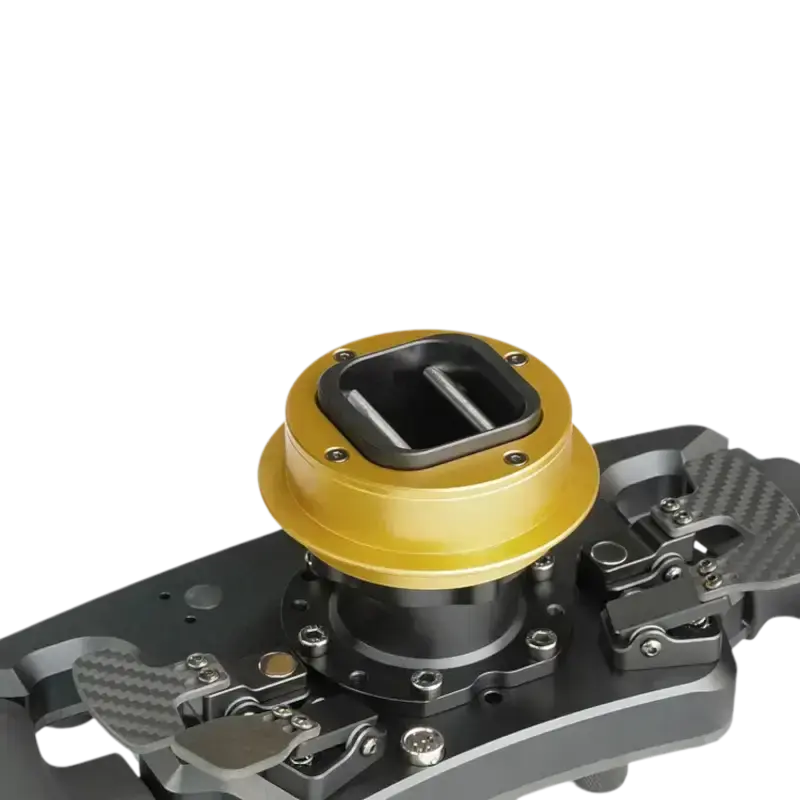

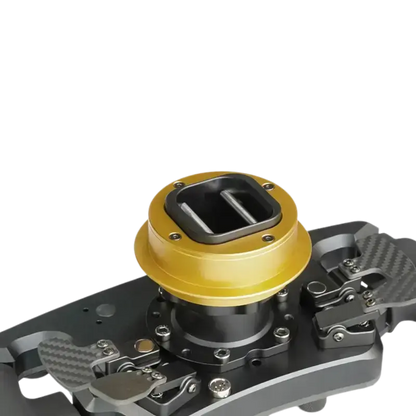

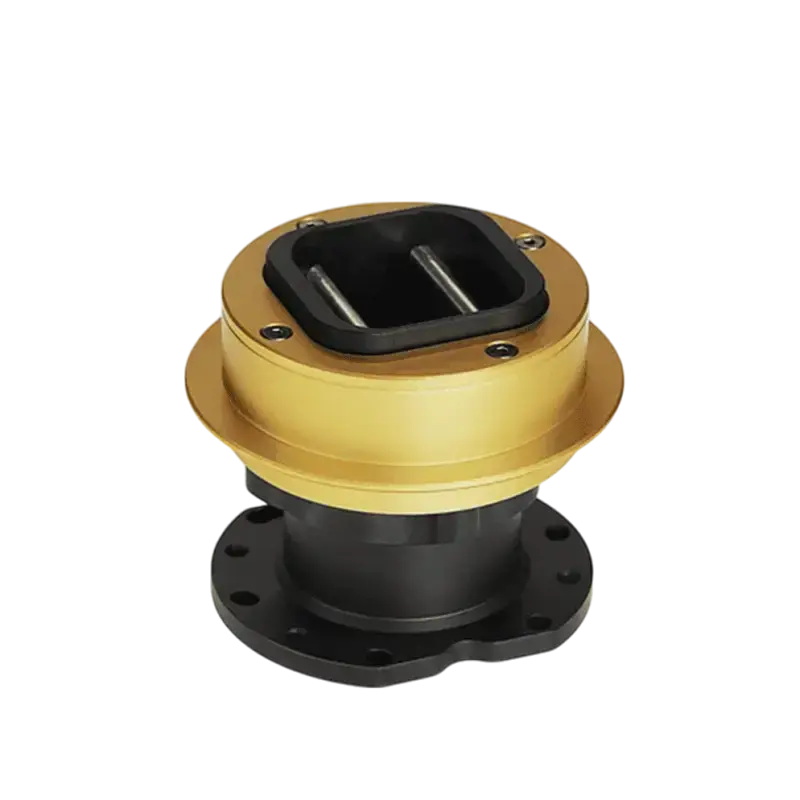

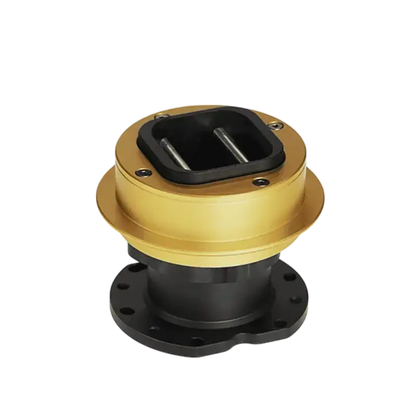

The aluminium LEOXZ QR2 uses a spring-loaded pin and tapered interface. LINK serves LEOXZ wheels via 7-pin, PRO exchangeable-QR Fanatec wheels and CORE 70 mm-pattern wheels.
Why choose this product?
- Three versions match different steering-wheel interfaces.
- Tapered geometry and a spring-loaded pin secure the wheel-side connection.
Compatibility
Platform: PC, Xbox or PlayStation support comes from the wheel and wheelbase, not QR2.
Connection and ecosystem: LEOXZ documents testing with Fanatec QR2 Base-Side Type-M and Type-C.
Requirements: A QR2 Base-Side is required. Use Type-C for compatible CSL DD / Gran Turismo DD Pro bases or Type-M for compatible Podium bases. For the XF1 Ultimate, choose LINK.
Specifications
What's in the box?
- LINK: wheel-side QR2, 6 x M5x10 bolts, 6 washers and 4 mm Allen key
- PRO: wheel-side QR2, 4 mm / 3 mm / T10 keys, plastic washer and 4 x M4 bolts
- CORE: wheel-side QR2, 6 x M5x16 bolts, 6 washers and 4 mm Allen key
Frequently asked questions
Which version is intended for the LEOXZ XF1 Ultimate?
LINK uses the 7-pin interface; the wheel's USB or optional wireless telemetry remains separate.
What are PRO and CORE for?

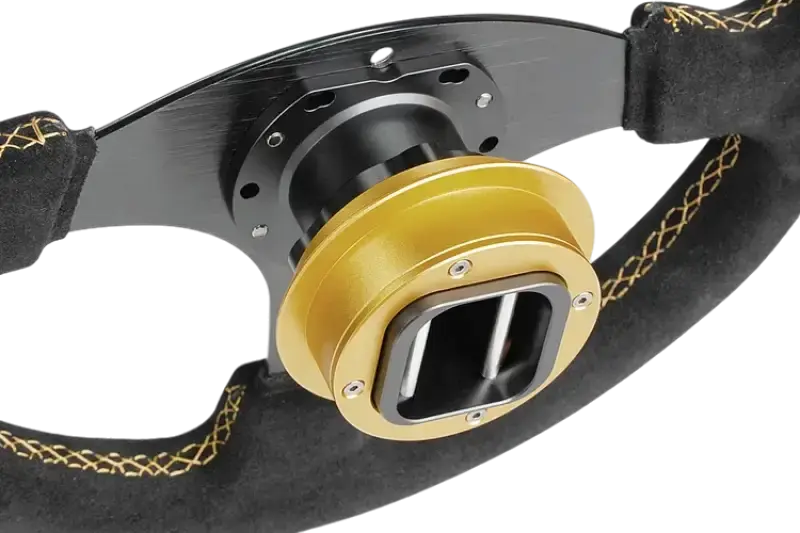

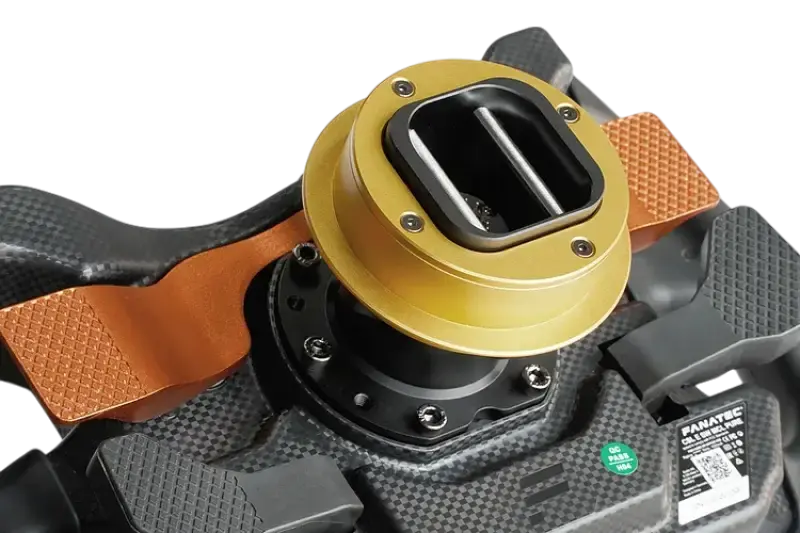

PRO serves exchangeable-QR Fanatec wheels; CORE serves 70 mm-pattern wheels and includes the Fanatec torque-unlock chip.
Do I also need a QR2 Base-Side?
Yes. It is sold separately; LEOXZ documents Type-M and Type-C testing.
Does LINK include a separate loose 7-pin cable?
No separate loose cable is listed. Installation connects the LINK cable to the wheel's 7-pin interface.
What installation limits does LEOXZ specify?
For LINK, maximum bolt torque is 2.5 Nm and inserted bolt length 6 mm. Use supplied hardware.
